Product Description

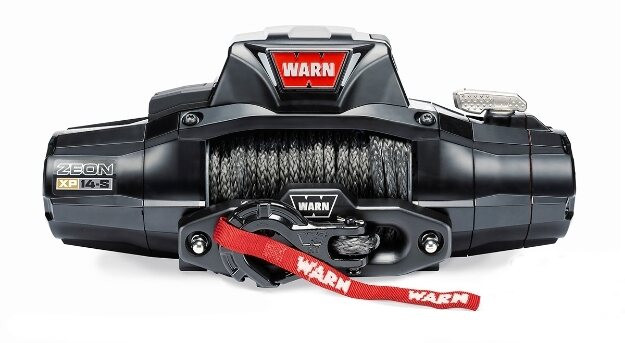

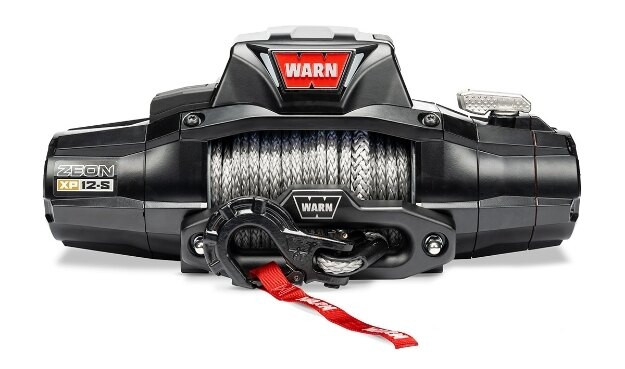

ZEON XP Ultimate 12V Recovery Winch | Universal | 10,000lb, 12,000lb and 14,000lb pull capacities, Synthetic Rope recovery lines, Mounting Bolt Pattern 10.0" x 4.5"
The all-new ZEON XP is Warn’s top of the line ultimate pulling machine with unmatched control and performance. Re-engineered from the ground up, with new controls to help you push the limits and work your winch with confidence. You also get unmatched performance with best-in-class line speed and options for 10,000, 12,000 and 14,000 pound pulling capacities. It’s a durable, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.
ZEON XP comes standard with a handheld corded remote plus the WARN HUB wireless. Both controls operate winch and clutch, and provide winch status feedback. HUB wireless is built into the control pack— no external receiver is required. Connect your smart phone to the winch with the WARN HUB app and you can fully control your the winch at up to 100 feet. The HUB app has built in gauges for load, temperature and voltage, plus alerts and haptic feedback. The all-new corded winch remote is IP68/69K waterproof rated. Winch status is delivered through an LED light display.
ZEON XP’s game-changing remote activated clutch makes winch operation easier than ever. The WARN exclusive remote clutch is operated at the push of a button and automatically engages when the winch is powered in or out. Both the wireless and corded remotes operate the clutch, plus there’s a manual override for users who prefer to have something to turn by hand
The Spydura rope provides tremendous tensile strength and abrasion resistance. It’s coated with a protective urethane coating that shields against UV, dirt and debris, helping to prevent the rope from splitting and fraying. The heat resistant red sleeve protects the first layer of rope from high winch drum temperature, and also works as a end-of-rope warning sleeve.
ZEON XP Recovery Winch Features:
- Optional 10,000, 12,000 and 14,000 pulling capacities
- OEM-grade bus bars provide highly efficient electrical connections, eliminating the exposed, inefficient wiring.

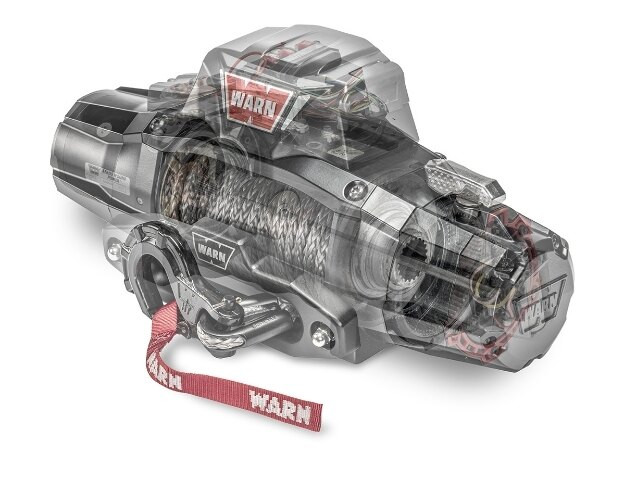

- ZEON XP is built on the same platform as ZEON XD and shares the high efficiency motor and geartrain, to deliver a blazing fast no-load line speed of up to 40 ft/min—the fastest in its class.
- Improved corrosion resistant black fasteners along with improved, UV resistant bussbar covers meet the highest OEM specifications.
- Made of forged aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- At the heart of the control pack is a built in HUB receiver and sensors that continuously monitor winch load, temperature, and battery voltage.
- Built-in remote operated clutch is operated with the push of button. A manual clutch lever offers users a mechanical override.
- A large drum diameter reduces rope wear, and the aluminum material helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation.
- The highest level of protection, featuring OEM-grade O-ring rubber gaskets. This new sealing delivers a longer service life and meets the most stringent IP68 submersion and IP69K spray testing.
