Product Description

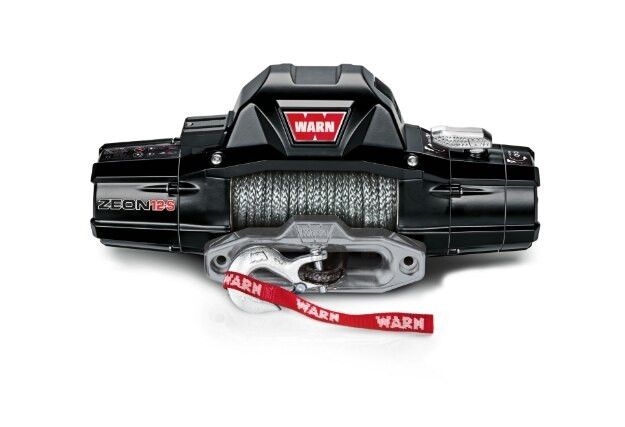

Zeon Heavy Duty 12V Electric Recovery Winch | Universal | 8,000lb, 10,000lb and 12,000lb pull capacities, Optional Steel Cable or Synthetic Rope recovery lines, Mounting Bolt Pattern 10.0" x 4.5"
The WARN ZEON winches continue to redefine winching. The ZEON is the premium winch line for trucks, Jeeps, and SUVs, from Warn. Providing unmatched durability, performance, and style. These winches have become top sellers for a good reason, they are the top choice of editors and off-roaders worldwide, and look as good as they perform. Available in 8,000lb, 10,000lb and 12,000lb recovery pulling capacities to choose from.
Packed with amazing features the ZEON Series winch is designed for serious off-roaders. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. With Multiple pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
Zeon Recovery Winch Features:
- Recovery capacities of 8,000, 10,000 and 12,000 pounds
- Available with steel cables or synthetic rope options
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
- Improved Winch Sealing To Keep The Elements Out
- Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components
| ZEON™ 8 SPECS/PART NUMBERS |
| Part Numbers: PN 88980 (12V DC) |
| Rated Line Pull: 8000 lbs. (3630 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 162:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 94 lbs. (42 kgs.) |
| Wire Rope: 5/16" x 100' (8mm x30.5m) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 25mm gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 42 (12.8) | 63 amps | 1/8000(3629) |
| 2000(910) | 17.2 (5.2) | 167 amps | 2/6777(3074) |
| 4000(1810) | 11.7 (3.6) | 255 amps | 3/5878(2666) |
| 6000(2720) | 8.5 (2.6) | 335 amps | 4/5189 (2353) |
| 8000(3630) | 6.2 (1.9) | 413 amps | |
| ZEON™ 8-S SPECS/PART NUMBERS |
| Part Numbers: PN 89305 (12V DC) |
| Rated Line Pull: 8000 lbs. (3630 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 162:1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 75 lbs. (34 kgs.) |
| Rope: 3/8" x 100' (9.5mm x30.5m) Spydura Synthetic |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 25mm gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 42 (12.8) | 63 amps | 1/8000(3629) |
| 2000(910) | 17.2 (5.2) | 167 amps | 2/6777(3074) |
| 4000(1810) | 11.7 (3.6) | 255 amps | 3/5878(2666) |
| 6000(2720) | 8.5 (2.6) | 335 amps | 4/5189 (2353) |
| 8000(3630) | 6.2 (1.9) | 413 amps | |
| ZEON™ 10 SPECS/PART NUMBERS |
| Part Numbers: PN 88990 (12V DC) |
| Rated Line Pull: 10000 lbs. (4536 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216.1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 98 lbs. (44 kgs.) |
| Wire Rope: 3/8" x 80' (9.52mm x24.38m) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 33 (10.27) | 62 amps | 1/10000(4536) |
| 2000(910) | 14.9 (4.5) | 144 amps | 2/8245(3740) |
| 4000(1810) | 11.2 (3.4) | 215 amps | 3/7014(3181) |
| 6000(2720) | 8.5 (2.6) | 380 amps | 4/6103 (2768) |
| 8000(3630) | 6.5 (2.0) | 353 amps | 5/5402 (2450) |
| 10000(4536) | 4.8 (1.5) | 409 amps | |
| ZEON™ 10-S SPECS/PART NUMBERS |
| Part Numbers: PN 89611 (12V DC) |
| Rated Line Pull: 10000 lbs. (4536 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216.1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 75 lbs. (34 kgs.) |
| Rope: 3/8" x 100' (9.5mm x30.5m) Sypdura Synthetic |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 33 (10.27) | 62 amps | 1/10000(4536) |
| 2000(910) | 14.9 (4.5) | 144 amps | 2/8245(3740) |
| 4000(1810) | 11.2 (3.4) | 215 amps | 3/7014(3181) |
| 6000(2720) | 8.5 (2.6) | 380 amps | 4/6103 (2768) |
| 8000(3630) | 6.5 (2.0) | 353 amps | 5/5402 (2450) |
| 10000(4536) | 4.8 (1.5) | 409 amps | |
| ZEON™ 12 SPECS/PART NUMBERS |
| Part Numbers: PN 89120 (12V DC) |
| Rated Line Pull: 12000 lbs. (5443 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Contactor |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216.1 |
| Clutch (freespooling): Rotating Ring Gear |
| Brake: Automatic Mechanical Cone |
| Drum Diameter/Length: 3.15"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 98 lbs. (44 kgs.) |
| Wire Rope: 3/8" x 80' (9.52mm x24.38m) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 30 (9.4) | 50 amps | 1/12000(5440) |
| 2000(910) | 13.4 (4.1) | 128 amps | 2/9894(4488) |
| 4000(1810) | 10.1 (3.1) | 196 amps | 3/8117 (3682) |
| 6000(2720) | 7.9 (2.4) | 257 amps | 4/7324 (3322) |
| 8000(3630) | 6.1 (1.8) | 316 amps | 5/6484 (2941) |
| 10000(4540) | 4.5 (1.4) | 375 amps | |
| 12000(5440) | 3.1 (0.9) | 438 amps | |
| ZEON™ 12-S SPECS/PART NUMBERS |
| Part Numbers: PN 95950 |
| Rated Line Pull: 12000 lbs. (5443 kgs.) single-line |
| Motor: 12V DC, Series Wound™ |
| Electrical Controls: Solenoid |
| Remote Control: Remote switch, 12" (3.7m) Lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216.1 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight (kit shipping): 80 lbs. (44 kgs.) |
| Wire Rope: 3/8" x 80' (9.52mm x24.38m) Spydura Pro Synthetic |
| Fairlead: Aluminum Hawse |
| Recommended Battery: 650 CCA for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black Powder coat |
| Warranty: Limited Lifetime |
| 12V DC PERFORMANCE SPECS | ||||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
|
| 0 | 30 (9.1) | 50 amps | 1/8000(3629) | |
| 2000(910) | 13.4 (4.1) | 128 amps | 2/7280(3302) | |
| 4000(1810) | 10.1 (3.1) | 196 amps | 3/6670 (3026) | |
| 6000(2720) | 7.9 (2.4) | 257 amps | 4/6230 (2826) | |
| 8000(3630) | 6.1 (1.8) | 316 amps | ||
| 10000(4536) | 4.5 (1.4) | 375 amps | ||
| 12000(5443) | 3.1 (0.9) | 438 amps | ||
