Product Description
Curt | Trunnion Bar Weight Distribution and Sway Control Kits | Universal | 8,000-10,000 Pound and 10,000-15,000 Pound GTW Options, 28 3/8" Bar Length, 2 Inch Receiver
The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads.
CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).

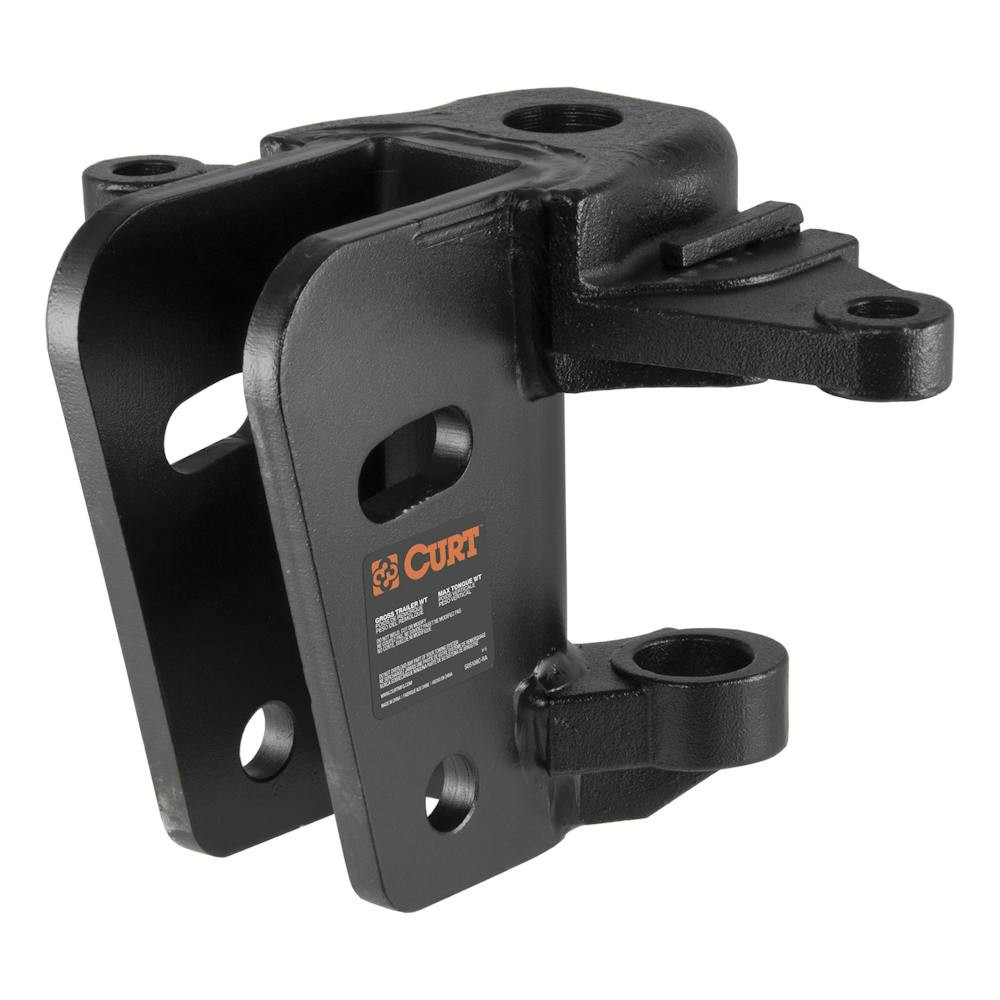

This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a optional gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips.
Sway Control

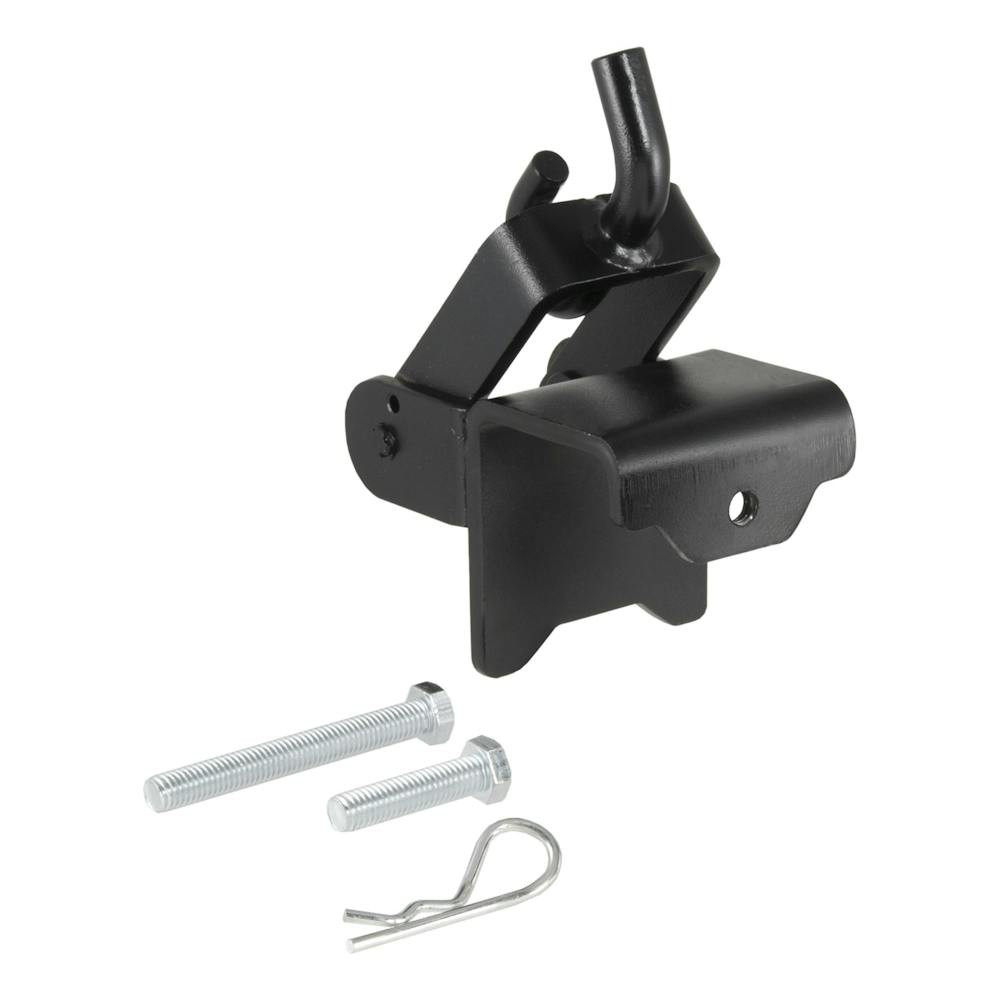

A sway control unit is an inexpensive solution to the problem of a wandering trailer. CURT sway control units are designed to attach to your vehicle and trailer at the coupling point and counteract any lateral movement in your trailer, keeping your tow load straighter on the road and giving you more control over your vehicle. The sway bar uses a material like that used in brake pads to provide the necessary resistance while still allowing your vehicle to complete proper turns with your trailer attached. The sway control mounts onto the frame of your trailer and connects to the vehicle's ball mount using a separate trailer ball from that used for coupling the trailer.
CURT sway controls are adjustable and easy to install. They come with a sway unit, a trailer-mounted attachment ball and bolts, a hitch-mounted attachment ball, a weld-on tab, a mount reinforcement plate and attachment clips. Though a weight distribution hitch is not an ideal solution for trailer sway on its own, CURT weight distribution hitches are made to be combined with a sway control unit and many are available with a sway controls included for a complete package. CURT also carries ball mounts that are specially designed to work with a sway control kit, having a sway tab welded right onto the ball mount platform.
Trunnion Bar Weight Distribution and Sway Control Kit Features:
- Optional 8,000-10,000 Pound and 10,000-15,000 Pound GTW
- Fits 2" Receivers
- Levels tow vehicle and trailer by redistributing a portion of the tongue weight
- Includes sway control kit (#17200) to help reduce trailer sway
- Equipped with 28-3/8" trunnion-style, forged steel spring bars
- Heavy-duty, formed head can be adjusted for precise leveling
- Sway control easily mounts on built-in sway control attachment tabs
- 2" shank can be flipped to provide necessary drop or rise
- Hookup brackets and lift handle allow for easy leveraging of spring bars
- Protected by a highly durable carbide powder coat finish
- Includes a pre-torqued 2-5/16" trailer ball
- Limited lifetime warranty (one-year finish, one-year parts)
