Product Description

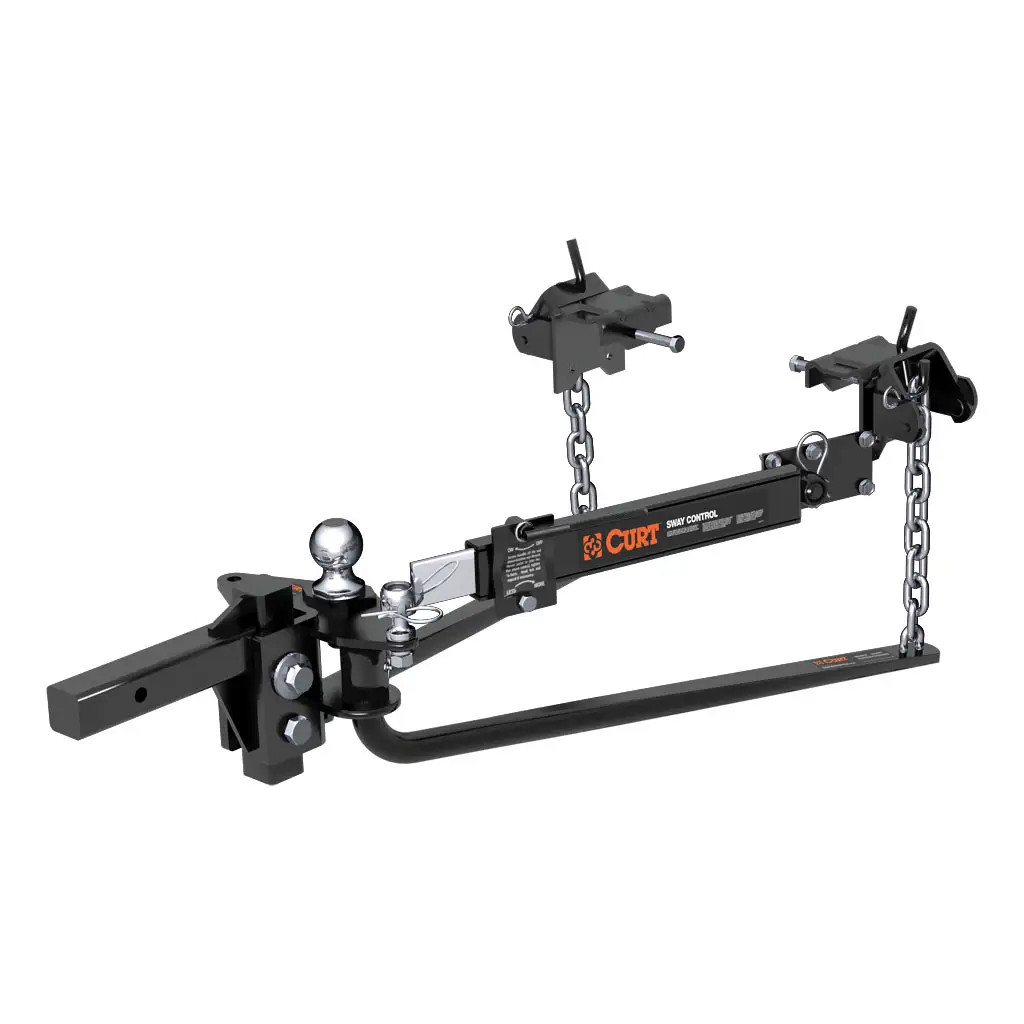

Curt | Round Bar Weight Distribution and Sway Control Kits | Universal | 8,000-10,000 pound and 10,000-14,000 Pound Options, Includes Sway Control Kit (#17200), Includes 2 5/16 Inch Ball, 2 Inch Shank
The CURT round bar weight distribution hitch and sway Control with integrated lubrication offers a smooth ride and level towing with its heavy-duty components and built-in lubrication system. From travel trailers to popup campers, the CURT WD hitch is the perfect camping companion to let you Bring It.
The strength of the round bar WD hitch begins with its heavy-duty, formed steel head. The formed construction allows for a precise design and supplies the durability needed to manage the weight of heavy trailers. Something unique to the weight distribution hitch is its grease zerk fittings, built directly into the head, allowing for easy, continuous lubrication at the spring bar mounting location. The spring bars are installed from the underside of the WD head and are made with forged steel for optimum strength.
Like other CURT weight distribution hitches, the round bar hitch comes with a highly adjustable shank and chain hookup brackets for the perfect amount of tension to level the load. The shank fits any 2" x 2" receiver tube opening, making it compatible with most class 3, class 4 and class 5 trailer hitches. The head is also compatible with Curt's 2-1/2" weight distribution shanks to match the heaviest of class 5 hitches. The hookup brackets and spring bars of the CURT WD hitch use chains and a simple snap-up design for easy setup and adjustment.
Each kit comes with installation hardware, a pre-torqued 2-5/16" trailer ball and a sway control unit (#17200). To protect this WD hitch on the way to your next destination and beyond, it also comes with a durable carbide powder coat finish for years of protection.
Sway Control
A sway control unit is an inexpensive solution to the problem of a wandering trailer. CURT sway control units are designed to attach to your vehicle and trailer at the coupling point and counteract any lateral movement in your trailer, keeping your tow load straighter on the road and giving you more control over your vehicle. The sway bar uses a material like that used in brake pads to provide the necessary resistance while still allowing your vehicle to complete proper turns with your trailer attached. The sway control mounts onto the frame of your trailer and connects to the vehicle's ball mount using a separate trailer ball from that used for coupling the trailer.
CURT sway controls are adjustable and easy to install. They come with a sway unit, a trailer-mounted attachment ball and bolts, a hitch-mounted attachment ball, a weld-on tab, a mount reinforcement plate and attachment clips. Though a weight distribution hitch is not an ideal solution for trailer sway on its own, CURT weight distribution hitches are made to be combined with a sway control unit and many are available with a sway controls included for a complete package. CURT also carries ball mounts that are specially designed to work with a sway control kit, having a sway tab welded right onto the ball mount platform.
Weight Distribution and Sway Control Kit Features:
- Levels tow vehicle and trailer by redistributing a portion of the tongue weight
- Includes sway control kit (#17200) to help reduce trailer sway
- Grease zerk fitting provides easy, continuous lubrication
- Grease must be applied to the zerk in order to lubricate
- Equipped with round, forged steel spring bars for reliable strength
- Heavy-duty, fabricated head can be adjusted for precise leveling
- Sway control easily mounts on built-in sway control attachment tabs
- 2" shank can be flipped to provide necessary drop or rise
- Hookup brackets and lift handle allow for easy leveraging of spring bars
- Protected by a highly durable carbide powder coat finish
- Includes a pre-torqued 2-5/16" trailer ball
- Limited lifetime warranty (one-year finish, one-year parts)
